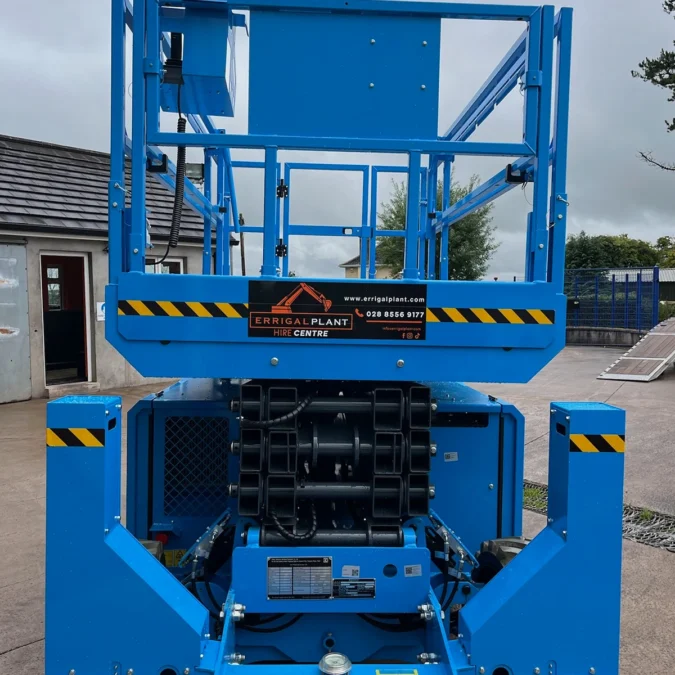

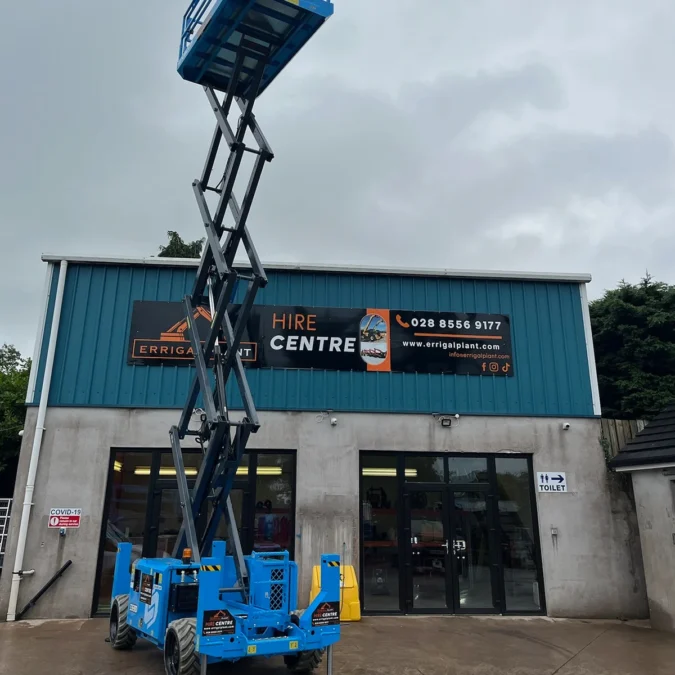

12 Meter Diesel Scissor Lift
Built for power, reach, and tough terrain, the 12.1m Diesel Scissor Lift is the ideal solution for working at height on uneven or sloped outdoor sites.
- Working Height: 12.1 m
- Power Type: Diesel
- Drive: True 4WD with positive traction control
- Gradeability: Up to 35%
- Stability: Self-levelling jacklegs for uneven ground
- Platform: 1.6 m wide with one-way extension
This 12.1m diesel scissor lift has true 4 wheel drive and positive traction control, with up to 35% gradeability, ensuring stable movement and navigation on potholed or uneven ground.
These compact Rough Terrain Scissors will handle the most rigorous sites, but still access those awkward areas. Self-levelling jacklegs provide extra stability and the ability to work on sloped or uneven ground.
Diesel powered, with a dual-sided hatchback door for convenient maintenance.
Featuring a swing out engine compartment for effortless servicing, a 1.6m wide platform and one way extension for optimal reach.
Facilitates easy work on uneven road surfaces with a one-click leveling system.
FEATURES:
- 2WDx2WS
- Fault diagnosis system
- AGM maintenance free battery
- Oscillating system
- Tilt protection system
- Raised traveling
- Auto braking system
- Emergency stop buttons
- Overload sensing system
- Solid tyres
- Emergency lowering system
Each piece of machinery equipment is delivered/ collected by our trained Errigal Plant Hire experts, who will load and unload plant safely from our lorries & vans onto your site.
Once we have the equipment delivered to you, a familiarisation handover will take place to make sure your operatives are aware of the machines basic functions and any safety issues.
This service is also standard practice in our depots where trained staff will demonstrate any hired machine at point of collection.
It’s our priority to make sure you get the job at hand done efficiently, and with the upmost safety of your operatives in mind.
When hiring any piece of quality equipment from Errigal Plant Hire you can be safe in the knowledge that it has been checked and tested by one of our technicians. The equipment will be started and run before your hire to ensure that the machine arrives on site in perfect working order. A member of our team will run the machine demonstrating all it’s functions and safety features before each hire, although we do advise that all customers read the manufacturers operating instructions before use.
Technical Specification
| Max Working Height | 12m |
| Max Platform Height | 10m |
| Max Horizontal Extension | 1.5m |
| Length-Stowed (Outriggers/Without) | 3.8m / 3.19m |
| Width-Stowed | 1.78m |
| Height – Stowed (Rail Folded) | 1.94m |
| Height – Stowed (Rail Unfolded) | 2.56m |
| Wheelbase | 2.28m |
| Ground Clearance | 0.22m |
| Platform Dimensions (L×W×H) | 2.8m×1.6m×1.1m |
| Platform Allowable Occupants (Indoor) | 4 persons |
| Platform Allowable Occupants (Outdoor) | 2 persons |
| Platform Capacity | 450kg |
| Drive Speed-Stowed | 5.6km/h (3.5mph) |
| Drive Speed-Raised | 0.48km/h (0.3mph) |
| Elevation Time (Unloaded) | 42s～52s |
| Descent Time (Unloaded) | 40s~50s |
| Gradeability | 35% |
| Turning Radius (Inside/Outside) | 2.11m / 4.6m |
| Tilt Rating (Front to Back) | 3° |
| Tilt Rating (Side to Side, Outrigger Tele-In/Tele-Out) | 2° / 0.8° |
| Max Outrigger Leveling (Front to Back) | 5.3° (front) / 4.2° (back) |
| Max Outrigger Leveling (Side to Side) | 11.7° |
| Tyres – solid | 26×12-16.5/Solid |
| Power Source | Kubota D1105-E4B-EU-X1 |
| Drive Mode | 4WD×2WS |
| Fuel Tank Capacity – Diesel | 48L |
| Hydraulic System Capacity | 72L |
