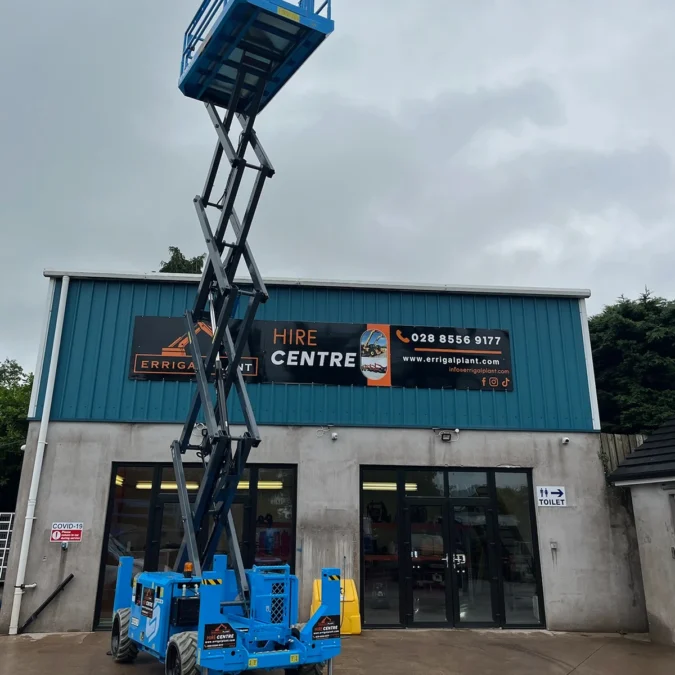

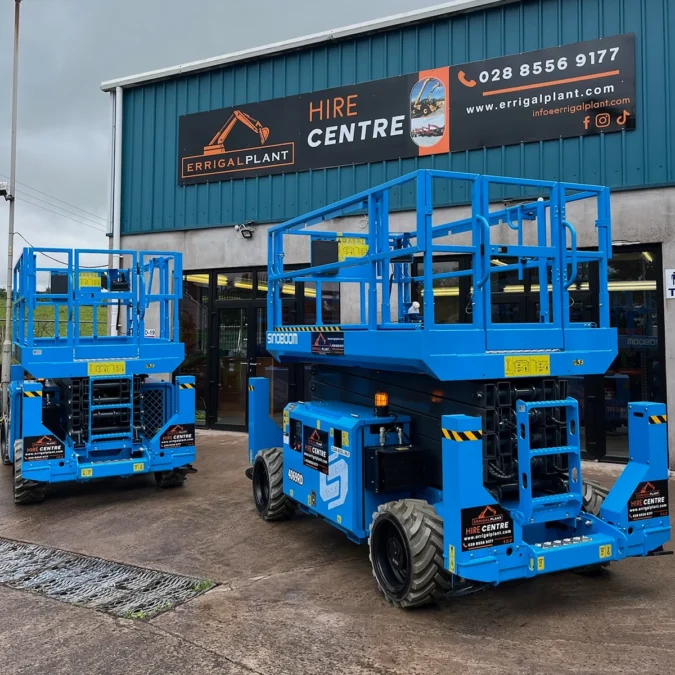

14 Metre Diesel Scissor Lift
Built for tight access, tough terrain, and all-day performance, this 12.2m Diesel Scissor Lift is ideal for working in confined outdoor or ventilated indoor spaces.
- Platform Height: 12.2 m (40′)
- Machine Width: 1.78 m – perfect for narrow access
- Turning Radius: 2.11 m (inside), 4.6 m (outside)
- Power: Kubota D1105 diesel engine with 4WD
- Fuel Tank: 48 L
- Tyres: Non-marking, suitable for rough terrain
Our specialist diesel scissor lifts are suitable for those who need to work in tight areas that are hard to reach. This 12.2 m (40’) Max Platform Height machine, has a narrow body of just 1.78m (5′ 10″), delivering real on-site solutions when space is tight, the machine has a turning radius of 2.11m (6’11”) Inside and 4.6m (15’1”) Outside.
Powered by a Diesel Kubota D1105-E45-EU-X1 engine giving 4-wheel drive and 2 wheel steer with a fuel tank capacity of 48L (10.6 gal) and a hydraulic system capacity of 72L (15.8 gal).
Fitted with non-marking tyres, these scissor lifts are suitable to be used on rough terrain either outdoors or inside a well-ventilated space.
Each piece of machinery equipment is delivered/ collected by our trained Errigal Plant Hire experts, who will load and unload plant safely from our lorries & vans onto your site.
Once we have the equipment delivered to you, a familiarisation handover will take place to make sure your operatives are aware of the machines basic functions and any safety issues.
This service is also standard practice in our depots where trained staff will demonstrate any hired machine at point of collection.
It’s our priority to make sure you get the job at hand done efficiently, and with the upmost safety of your operatives in mind.
When hiring any piece of quality equipment from Errigal Plant Hire you can be safe in the knowledge that it has been checked and tested by one of our technicians. The equipment will be started and run before your hire to ensure that the machine arrives on site in perfect working order. A member of our team will run the machine demonstrating all it’s functions and safety features before each hire, although we do advise that all customers read the manufacturers operating instructions before use.
Technical Specification
| Max Working Height | 14.2 m (46'10.7") |
| [A] Max Platform Height | 12.2 m (40'0.3") |
| [B] Max Horizontal Extension | 1.5m (4'11.1'') |
| [C] Length-Stowed (Outriggers/Without Outriggers) | 3.8 m / 3.19 m (12'5.6" / 10'5.6") |
| [D] Width-Stowed | 1.78 m (5'10") |
| Height - stowed (Rail Folded) | 2.1m (6'10.7") |
| [E] Height - stowed (Rail Unfolded) | 2.73m (8'11.5") |
| [F] Wheelbase | 2.28m (7'5.8") |
| Ground Clearance | 0.22m (8.66") |
| Platform Dimensions(L×W×H) | 2.8m×1.6m×1.1m(9'2.2"×5'3"×3'7.3") |
