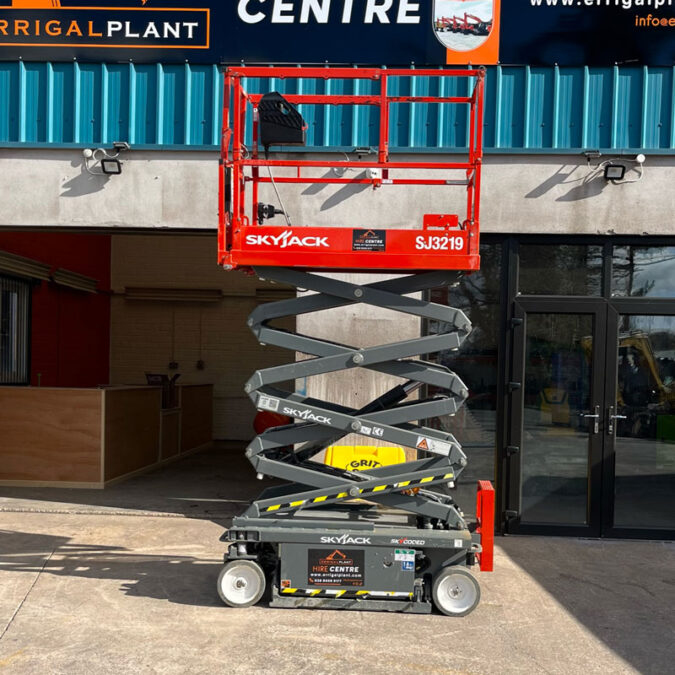

7.5 Meter Electric Scissor Lift
Built for indoor versatility and tight access, the 7.5m Compact Electric Scissor Lift is a zero-emission platform ideal for confined working areas.
- Working height of 7.5m
- Compact 0.81m width for tight access
- Battery-powered with zero emissions and quiet operation
- Gradeability up to 25%
- Extendable platform with 227 kg capacity
- Perfect for maintenance, construction, and fit-out work
The 7.5m Compact Electric Scissor Lift is a powerful and efficient solution for accessing tight spaces where traditional access platforms can’t go. With a working height of 7.47m and platform height of 5.64m, this machine is ideal for indoor maintenance, installations, construction, and warehouse fit-outs.
Designed for performance in confined areas, the lift features a zero-turning radius, making it incredibly agile in tight aisles or around obstacles. At just 0.81m wide and 1.80m long, it can easily navigate narrow spaces while still providing a spacious work platform, including a 0.91m roll-out extension deck for additional reach.
The electric battery-powered system ensures quiet, fume-free operation, ideal for indoor use and sensitive environments. Its solid non-marking tyres help protect floors, while a compact 1,476kg build makes transport and repositioning straightforward.
Equipped with multiple safety features, including guardrails, emergency stop controls, non-slip surfaces, and solid construction, this scissor lift ensures operators can work confidently and efficiently at height.
Whether you’re working in retail, warehousing, construction, or facility management, this compact electric scissor lift is a reliable and versatile platform to keep your project moving.
Specifications
Work Height 24’ 6” (7.47 m)
Raised Platform Height 18’ 6” (5.64 m)
Lowered Platform Height 41” (1.04 m)
Overall Width 32” (0.81 m)
Overall Length 71” (1.80 m)
Stowed Height (Rails Up) 84” (2.13 m)
Stowed Height (Rails Down) 79.75” (2.02 m)
Platform Width (Inside Dimension) 26” (0.66 m)
Platform Length (Inside Dimension) 61” (1.55 m)
Extension Deck (Roll Out) 3’ (0.91 m)
Ground Clearance (Stowed) 3.5” (8.9 cm)
Ground Clearance (raised) 0.50” (1.3 cm)
Wheelbase 54” (1.37 m)
Weight 3,255 lbs (1,476 kg)
Gradeability 25%
Turning Radius (Inside) 0
Turning Radius (Outside) 65” (1.65 m)
Lift Time (With Rated Load) 19 sec
Lower Time (With Rated Load) 25 sec
Drive Speed (Stowed) 2.1 mph (3.4 km/h)
Drive Speed (Raised) 0.7 mph (1.1 km/h)
Maximum Drive Height Full Height
Capacity 500 lbs (227 kg)
Distributed Capacity (Main Platform) 250 lbs (113 kg)
Distributed Capacity (Extension Deck) 250 lbs (113 kg)
Local Floor Load (With Rated Load) 168 psi (1,159 kPa)
Overall Floor Load (With Rated Load) 243 psf (1,188 kg/m2)
Maximum # of Persons 2
Tire Type Solid, N/M
Tire Size 12 x 4 x 8
Each piece of machinery equipment is delivered/ collected by our trained Errigal Plant Hire experts, who will load and unload plant safely from our lorries & vans onto your site.
Once we have the equipment delivered to you, a familiarisation handover will take place to make sure your operatives are aware of the machines basic functions and any safety issues.
This service is also standard practice in our depots where trained staff will demonstrate any hired machine at point of collection.
It’s our priority to make sure you get the job at hand done efficiently, and with the upmost safety of your operatives in mind.
When hiring any piece of quality equipment from Errigal Plant Hire you can be safe in the knowledge that it has been checked and tested by one of our technicians. The equipment will be started and run before your hire to ensure that the machine arrives on site in perfect working order. A member of our team will run the machine demonstrating all it’s functions and safety features before each hire, although we do advise that all customers read the manufacturers operating instructions before use.
